Q235 SJ235R Customized Galvanized Traffic Barrier Steel Highway Guardrail

Name: Q235 SJ235R Customized Galvanized Traffic Barrier Steel Highway Guardrail
Brand: Safebuild
Price: 10.00 USD

Quality Q235 SJ235R Customized Galvanized Traffic Barrier Steel Highway Guardrail wholesale

Place of Origin : Shandong, China

Brand Name : Safebuild

Packaging Details : 100 pieces/bale or as per customer's request, all packing methods are suitable for container loading and transportation loading and unloading

Supply Ability : 100000 Piece/Pieces per Year

MOQ : 20 pieces

Price : $10.00/pieces 20-199 pieces

Product name : C Post

Material : Q235(SJ235R)

Color : Customized

Surface treatment : Hot Dippe Galvanized

Application : Roadway Safety

Type : C Post

Keyword : Highway Guardrail Post

Usage : Road Traffic Safe

Certificate : ISO9001:2008

Packing : Standard Packing

Port : Qingdao Tianjin Shanghai, Port China

Contact Now

Products Description

Guardrail Post — the component supporting the road safety barrier system

Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.
In the assembly of high-speed guardrail, the post plays the role of connecting the top and the bottom, that is to say, one end of the post is connected with the spacer and guardrail, and the other end is firmly fixed on the ground, so as to support the whole guardrail component and protect vehicles and pedestrians to deviate from the track due to impact on the guardrail.

Q235 SJ235R Customized Galvanized Traffic Barrier Steel Highway Guardrail

Type C post is widely used in road security guardrail

At present, the C shape post is widely used all over the world. The corrugated guardrail is composed of two posts, which is composed of the beam and beams corrugated beam steel guardrails and between them, and the two guardrails are mounted between two corrugated steel guardrails. In the normal operation of the highway, the barrier can be conveniently inserted into the preset plug hole in the opening, which can be isolated and protected.

C post by steel strip cold rolling forming, the dimensions is diversiform, can be customized according to customer requirements, in the whole guardrail post, which has been widely used, C post section for "C" glyph, strength, also facilitate guardrail installation, C post can cooperate and various blocks, C type post can and C type spacer, u-shaped spacer, box spacer, bracket, etc is tie-in, cooperate with various forms.

Product Paramenters

Name	C post for road guardrails
Material	Q235/Q345
Surface treatment	Hot Dipped Galvanized According to customer requirements
Thickness	4.0mm/5.0mm
Zinc coating	30-45μm 70-85μm According to customer requirements
Specification	1005025/1205516/12062.525 1206818/1208025/1506520 15010025/The customer request
Application	Highway/road safey barriers part
Certificate	SGS/CE/ISO 9001
Standard	JT/T281/AASHTO M180

Details Images

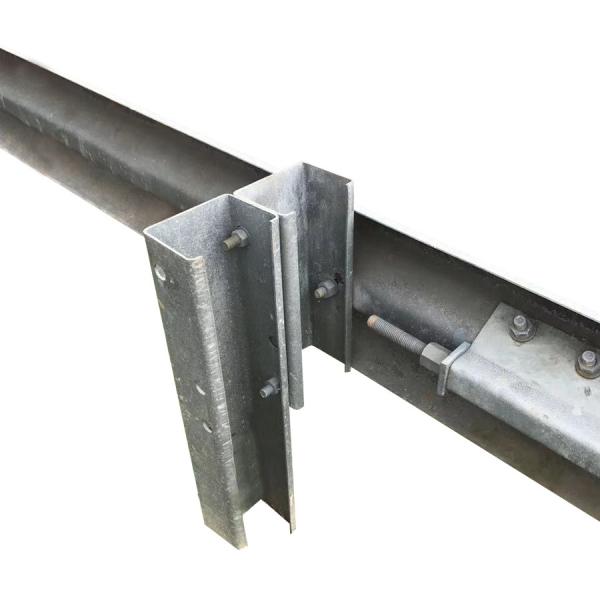

C POST ＆ BOX SPACER

C POST ＆ U SPACER

C POST ＆ TRAPEZOIDAL SPACER

C POST ＆ C SPACER

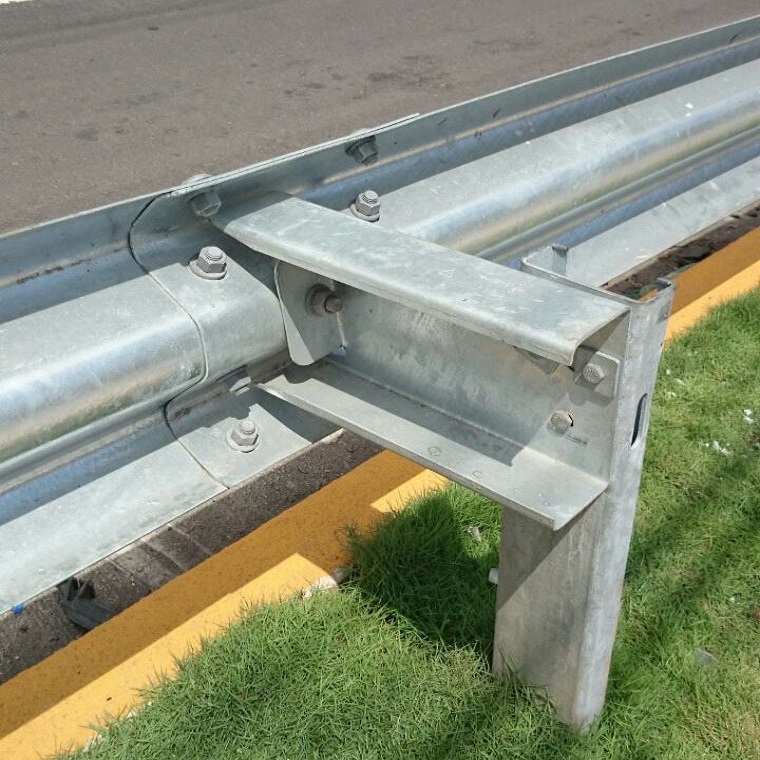

C POST ＆ BRACKET

Company Profile

Our company is a professional profile manufacturer. We can customize professional C-shaped posts for customers to meet their requirements for different road traffic security guardrail.

At present, the C shape post is widely used all over the world. The corrugated guardrail is composed of two posts, which is
composed of the beam and beams corrugated beam steel guardrails and between them, and the two guardrails are mounted between two corrugated steel guardrails. In the normal operation of the highway, the barrier can be conveniently inserted into the preset plug hole in the opening, which can be isolated and protected.

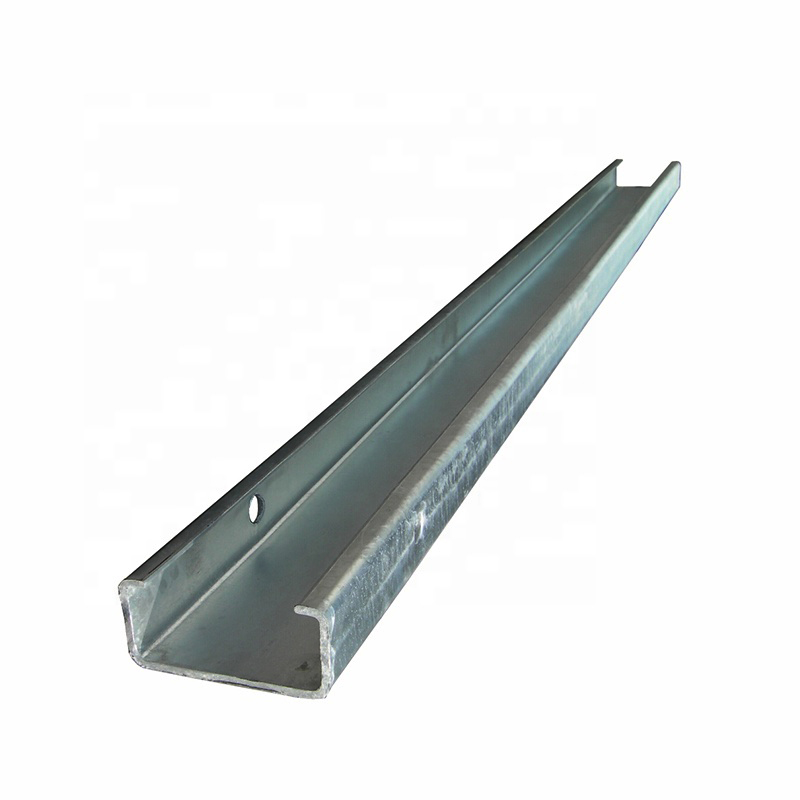

Blank C POST

ROPE GUARDRAIL C POST

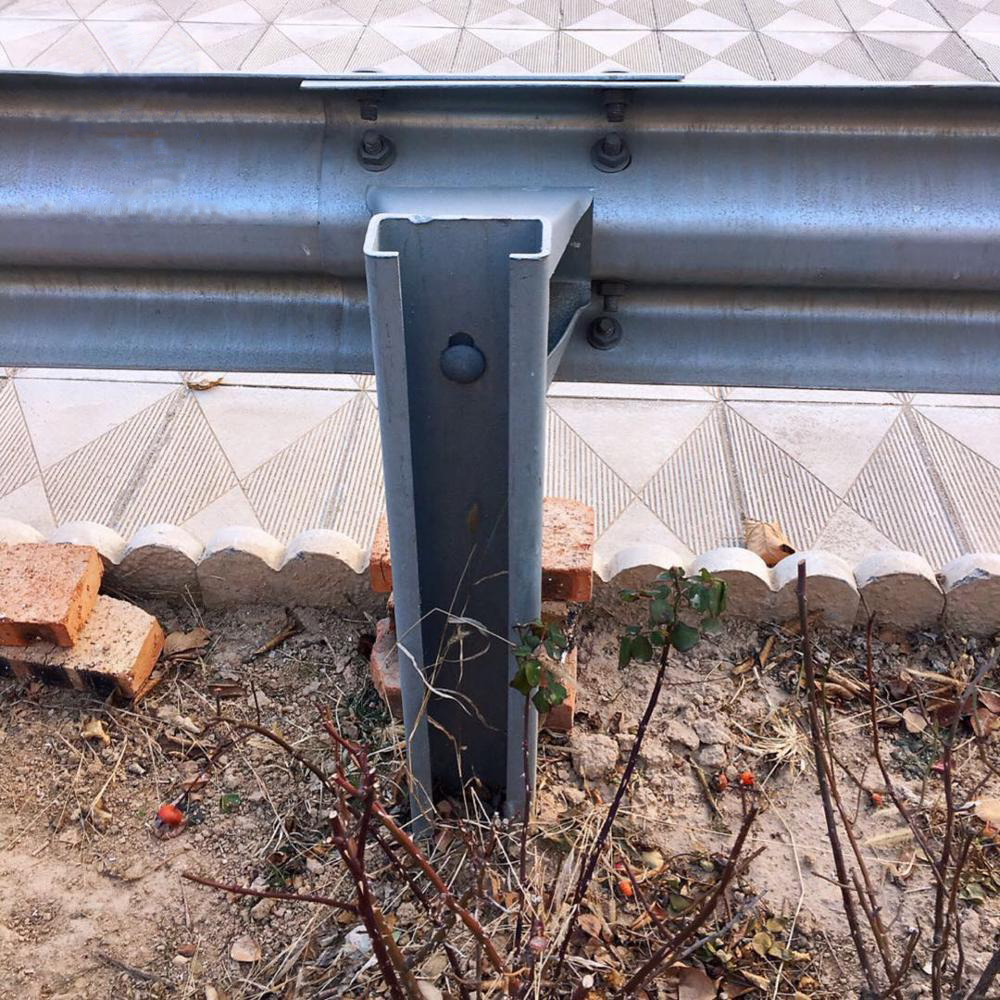

C galvanized POST

Recommend Products

Advantages

Features of C Post

■ High-quality raw material Q235, advanced technology and durable.
■ The edge design is smooth that's can prevent cutting accidental when installation.
■ Hot dipped galvanized, anti-corrosion and easy to clean.
■ Professional manufacturers customized produce and quality assurance.

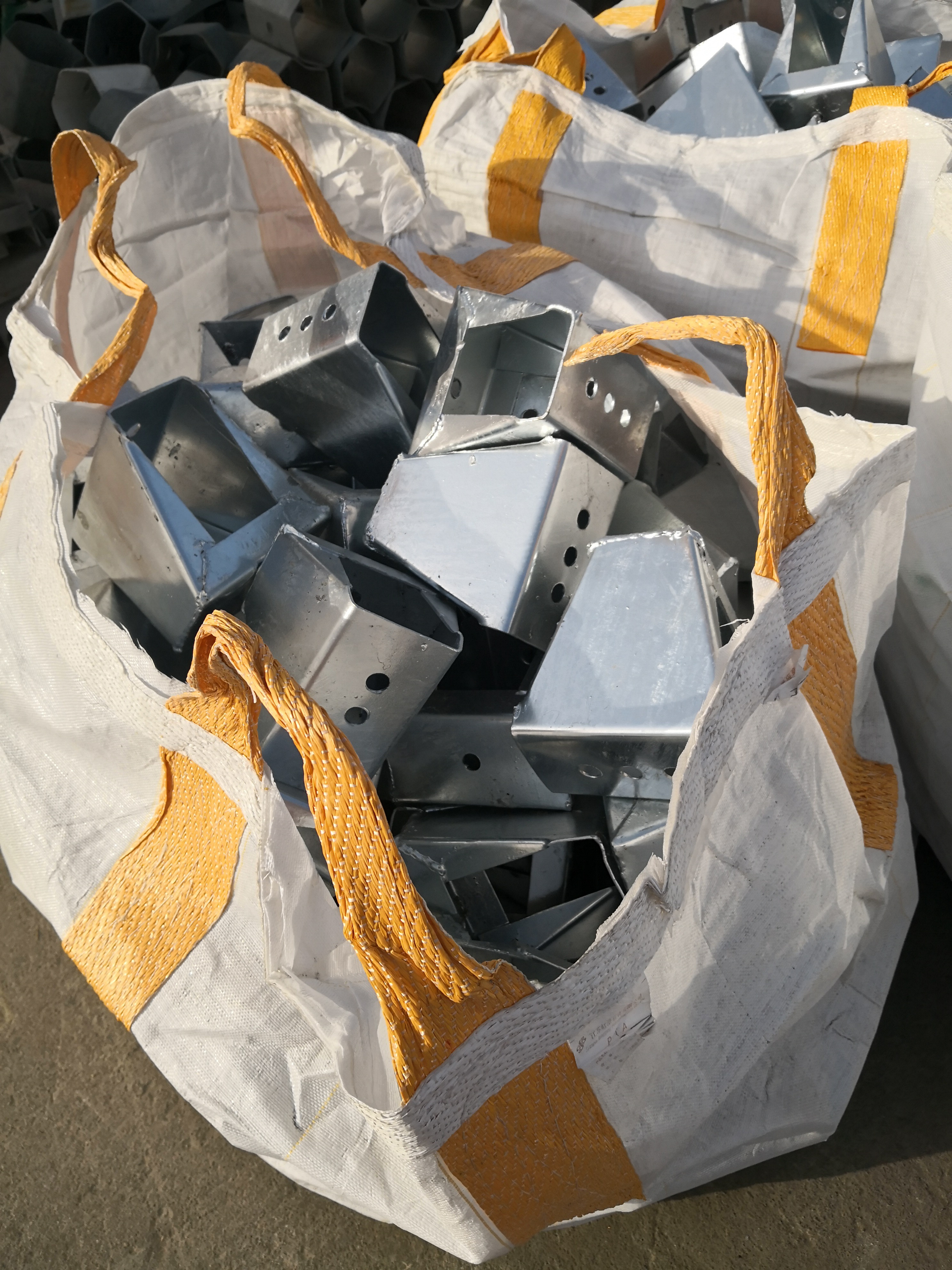

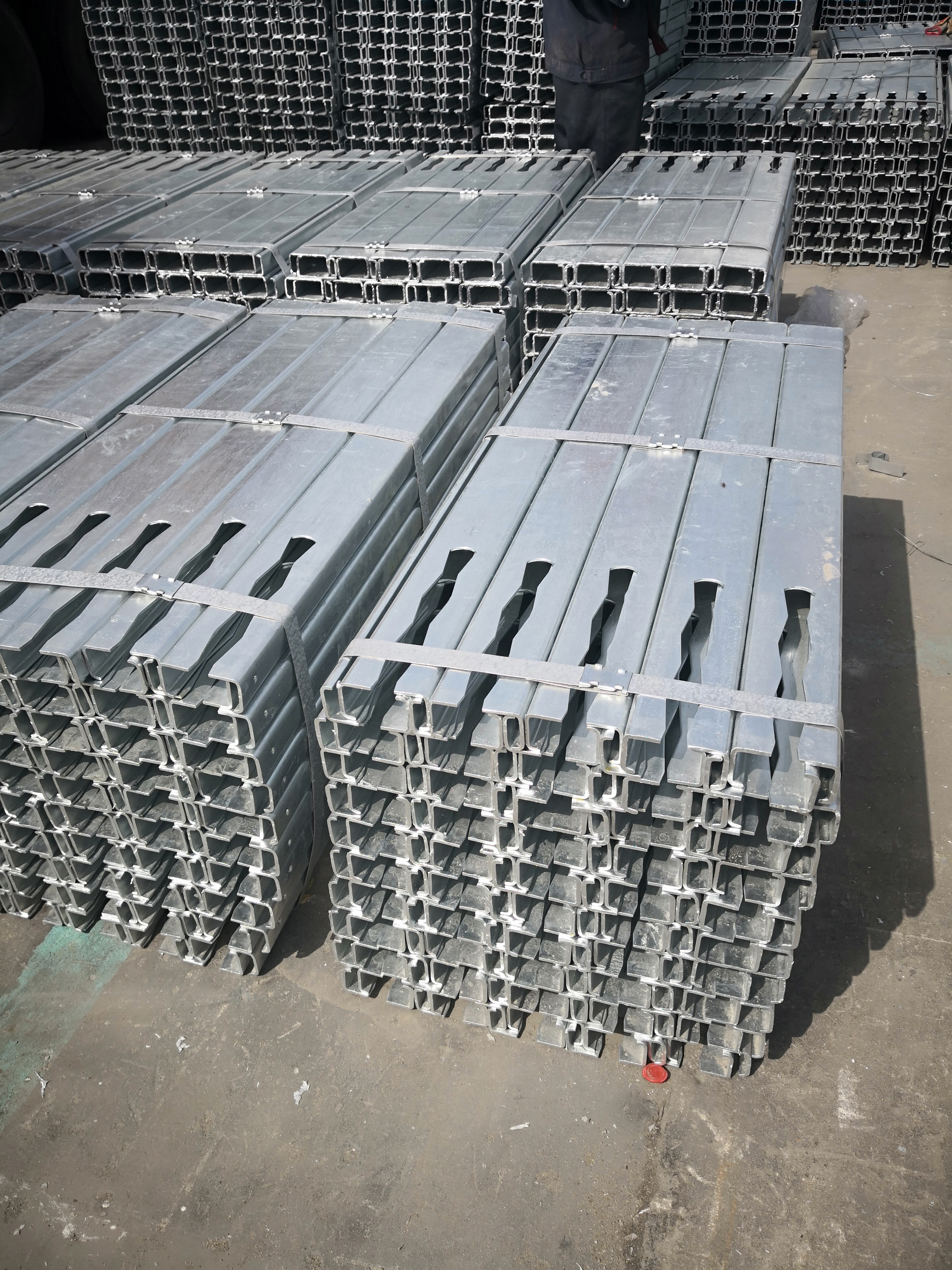

Product packaging

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: For the new customer we choose 30% TT for subscription and 70% TT before the delivery .

If you have another question, pls feel free to contact us as below:
+86-635-7070701
