AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

Place of Origin : Shandong, China

Brand Name : Safebuild

Model Number : 100*50

Color : Customized

Material : Q235 Q345

Product name : Highway Guardrail

Application : Roadway Safety

Zinc Coating : 550-600g/㎡,Customized

Surface treatment : Galvanized ,Powder Coated

Certificate : CE/BV/ISO 9001/ISO14001/ISO 18001

Usage : Outdoor Security

Standard : AASHTO M-180

Technology : Hot Galvanized+cold Rolled

Packaging Details : Export standard bundle or as clients request

Port : Qingdao Tianjin Ningbo Shanghai Port, China

Supply Ability : 12000 Ton/Tons per Month

MOQ : 200 pieces

Price : $10.00/pieces 200-1999 pieces

Contact Now

Product Overview

FISHTAIL END

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an
"end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to
accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.
The fashtail end, is a European and American countries design concept, it is shaped like a fish's tail, so it is called the
fashtail end, it can also be called an endwing. It consists of the strip which is formed after punching and forming a molding. This product is simple and easy to assemble, and through the surface hot galvanizing processing it undergoes it as gained a strong anti-corrosion ability, it can play a guiding role to the cars on the road, it reduces the effect of collisions and it effectively prevents the vehicle from leaving the road.
The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beams are used with a W beam guardrail plate, and Thrie beams are used with a Thrie beam guardrail plate.
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

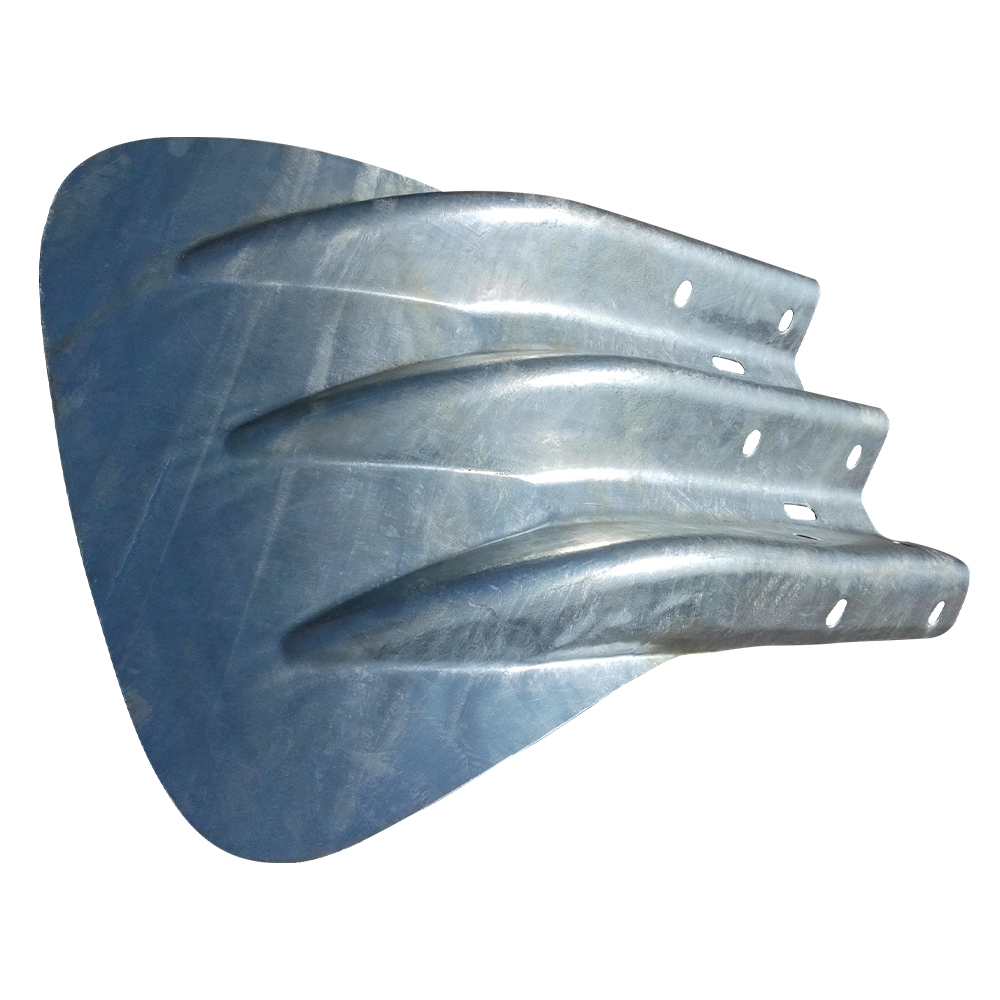

The fishtail end for thrie beam guardrail.
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

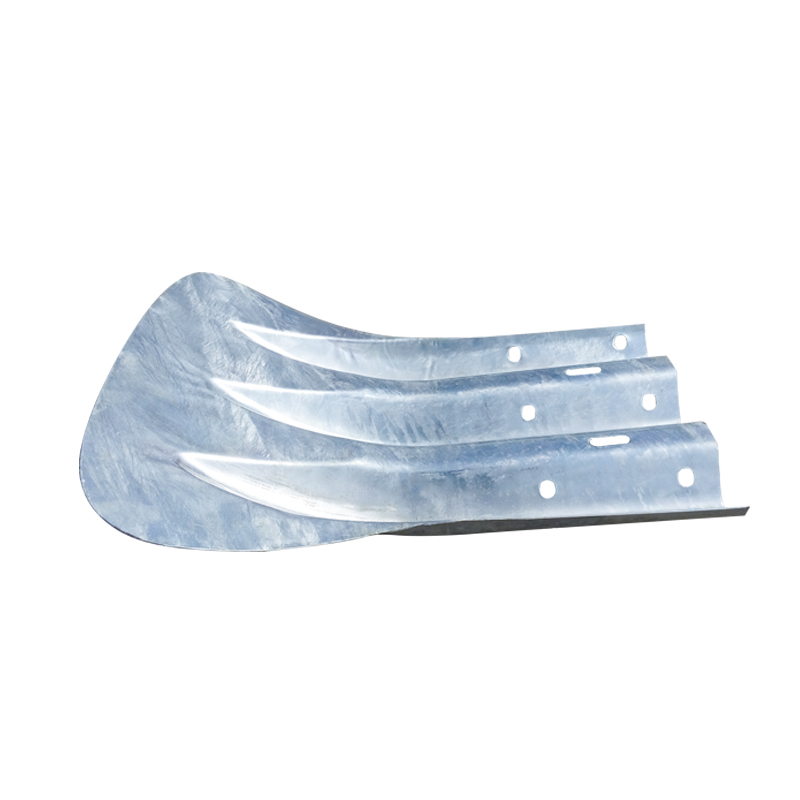

The fishtail end for w beam guardrail.
FEATURES AT A GLANCE
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

PRODUCT SPECIFICATIONS
SPECIFICAIONS
Data
Material
Steel(Q235 or Q345 Grade)
Length
700,710,730 mm or customized
Wave Width
310, 506,460mm or customized
Wave Height
83,85,310mm or customized
Thickness
2.75mm,3mm,4mm or customized
Zinc Coating
350- 550g/m2
Surface treatment
Hot dipped Galvanized or powder coating
Display colors
red, yellow, white, blue and green
Features
Great corrosion resistant, high intensity, long and durable
Manufacturing Technique
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
