Place of Origin : Shandong, China
Brand Name : Safebuild
Product name : Highway Guardrail
Material : Stainless Steel
Application : Roadway Safety
Usage : Road Traffic Safety
Surface treatment : Galvanized + Powder Coated
Feature : Anti-corrosion
Certificate : ISO9001:2000 GB/T19001-2000
Type : Straight Barrier
Packing : Carton
Standard : AASHTO M-180
MOQ : 200 pieces
Price : $60.00/pieces 200-1999 pieces
American AASHTO-M180 Technical Standard W-beam highway guardrail | ||||||||
TYPE | Overall Length (mm) | Effection Length (mm) | Norminal Uncoated Thickness (mm) | |||||
TYPE Ⅰ | 4130 | 3810 | 2.67 | |||||
TYPE Ⅱ | 4320 | 4000 | 2.67 | |||||
MECHANICAL PROPERTIES | ◆Material grade: S355JR ◆Yield Point, minimum, 345Mpa (50000psi); ◆Tensile Strength, minimum 483Mpa (70000psi); and ◆Elongation, in 50mm (2 in.),minimum, 12 percent. | |||||||
NOTES | ●Thickness of Zinc coating: 550g/㎡ or1100g/㎡; ●The beams may galvantzed before or after fabrication; ●We can customize the length and thickness according to customer requirements. |
![]() |

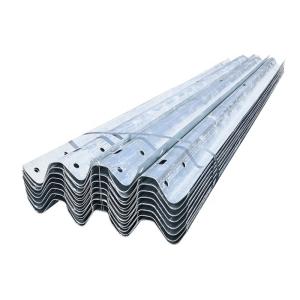

Galvanized Powder Coated W Beam Guardrail and ISO9001 2000 GB/T19001-2000 Certified Images |
