Galvanized Powder Coated Straight Barrier SKT Terminal End Wings Straight Barrier

Name: Galvanized Powder Coated Straight Barrier SKT Terminal End Wings Straight Barrier
Brand: Safebuild
Price: 10.00 USD

Quality Galvanized Powder Coated Straight Barrier SKT Terminal End Wings Straight Barrier wholesale

Place of Origin : Shandong, China

Brand Name : Safebuild

Product name : Highway Guardrail

Material : Q235 Q345

Surface treatment : Galvanized + Powder Coated

Color : Customized

Application : Roadway Safety

Usage : People Safe

Type : Straight Barrier

Keyword : Safety Barrier Guard Rail

Feature : Anti-corrosion

Key words : Retractable Belt Crowd Control Barrier

Packaging Details : Export standard bundle or as clients request

Supply Ability : 2000 Piece/Pieces per Year

MOQ : 200 pieces

Price : $10.00/pieces 200-1999 pieces

Contact Now

Products Description

Galvanized Powder Coated Straight Barrier SKT Terminal End Wings Straight Barrier

SKT-SP and FLEAT-SP End Terminal Installation and Repair Manual Roads safety barrier systems

SKT-SP and FLEAT-SP End Terminal Installation and Repair ManualRoads safety barrier systems are designed to shield vehicles from striking a hazard. Steel guardrail systems are the world’s most
widely specified safety barrier systems and have significantly contributed to improving the safety of our regions roads. The strength of a steel guardrail system is primarily developed through a combination of the flexural resistance of the rail and the bending resistance of the supporting posts. In addition, the use of end terminals is an important characteristic in the function of a steel guardrail system. Terminals are the specially designed end pieces located at the leading and trailing end of the system. End terminals are designed to anchor the steel guardrail system and introduce the necessary tensile and flexural strength required for safe vehicle containment and re-direction throughout the length-of-need section.

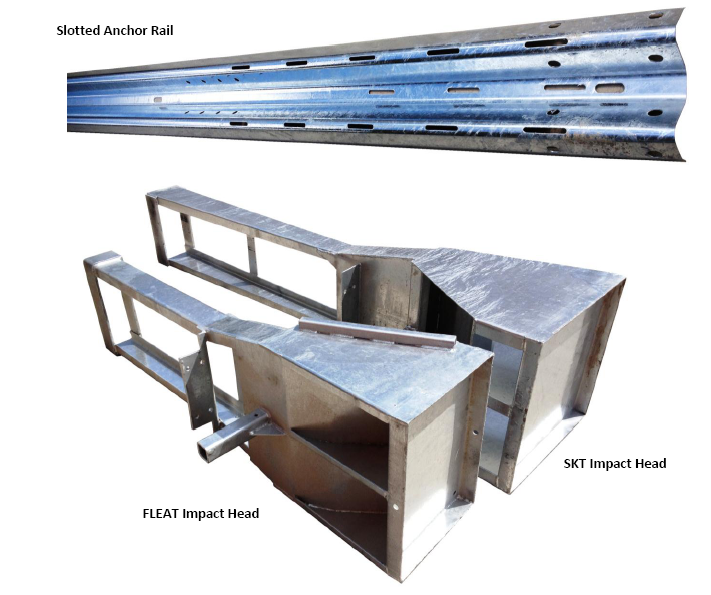

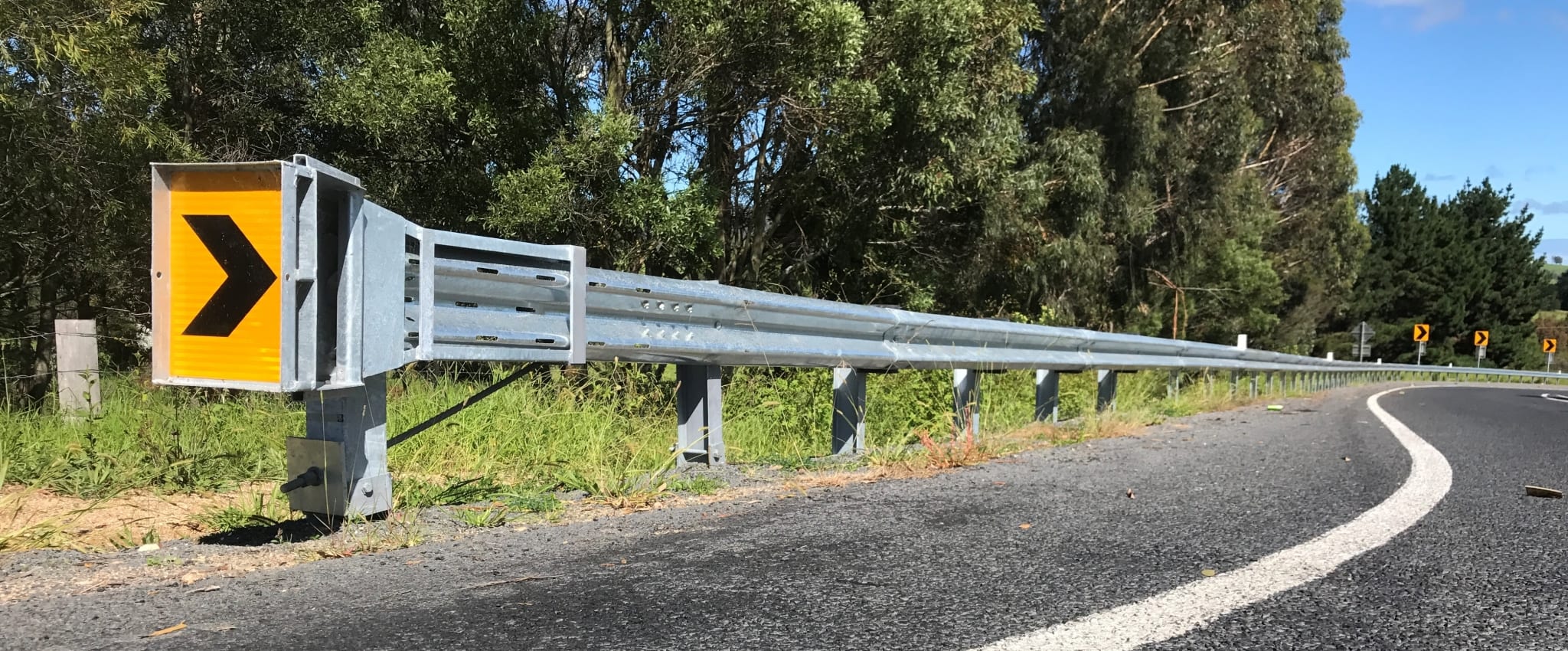

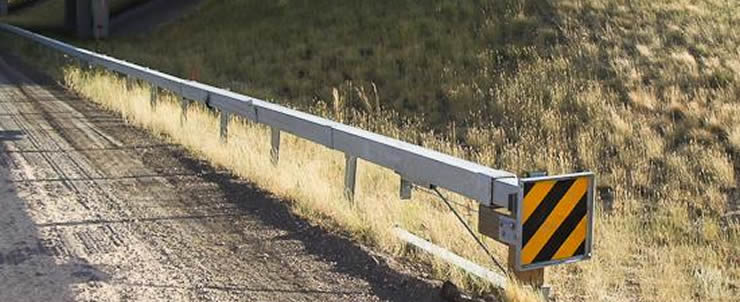

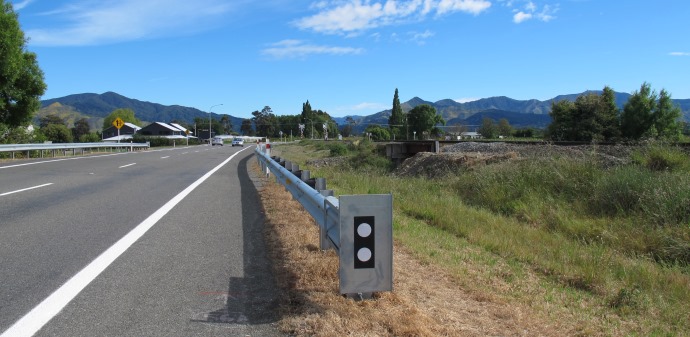

SKT-SP and FLEAT-SP End Terminal Installation and Repair ManualThe SKT-SP guardrail end terminal is an energy-absorbing, tangent end terminal, designed to minimise the severity of impacts occurring at the end of the safety barrier system.
Designed for attachment directly to w-beam guardrail, the SKT-SP is one of the world’s leading end treatment solutions and is fully compliant to the requirements of NCHRP Report 350.

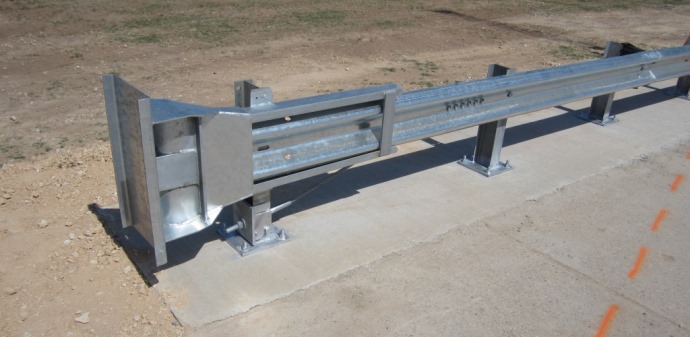

SKT-SP and FLEAT-SP End Terminal Installation and Repair ManualThe tangential design feature allows the SKT-SP to be installed parallel to the roadway reducing the requirement for earthworks and site grading associated with traditional parabolic-flared terminal designs.
The SKT-SP is available in two configurations. The compact 7.62m TL2 terminal is an economical solution where the posted speed is less than or equal to 70km/h. The standard 15.24m TL3 terminal is acceptable for all posted speeds greater than 70km/h.

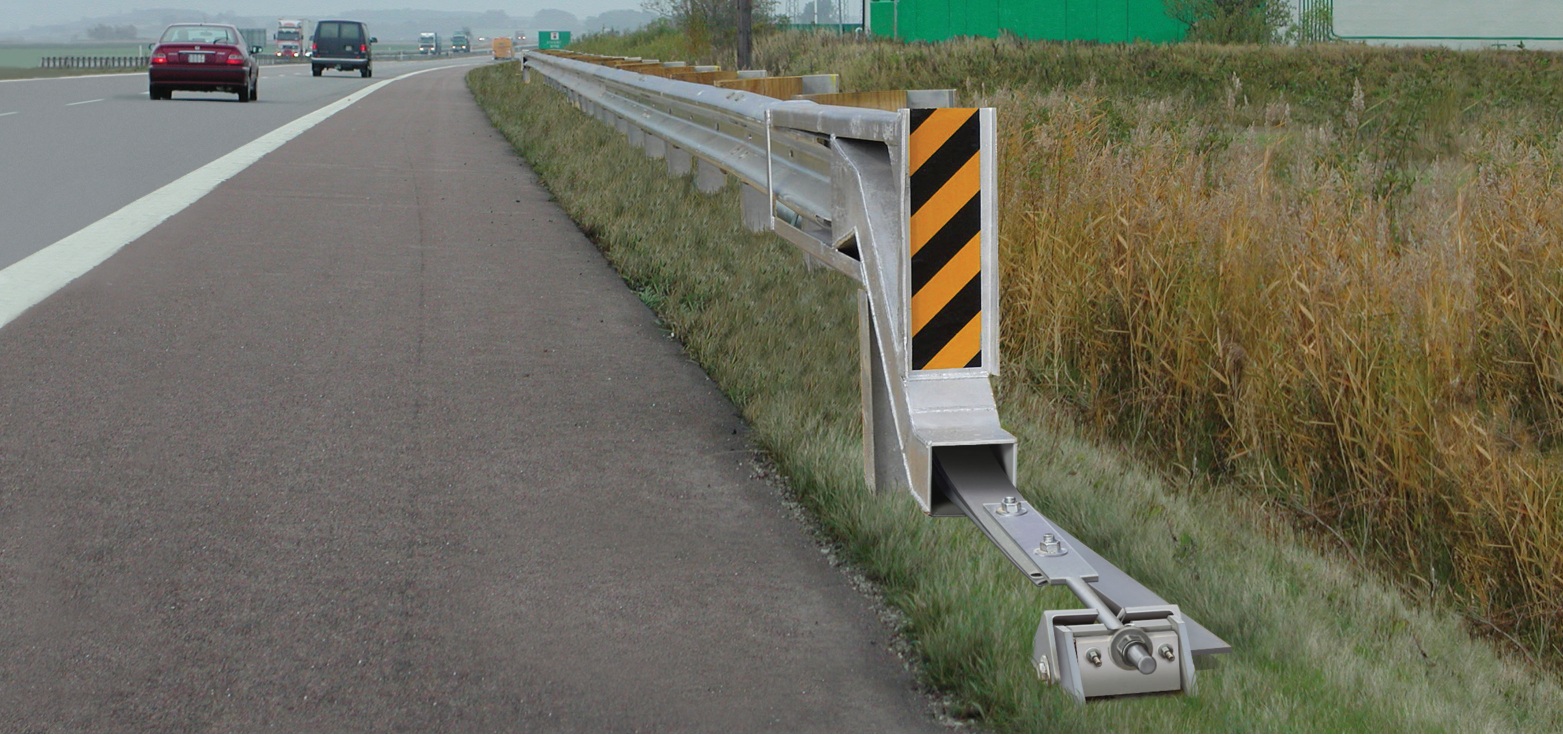

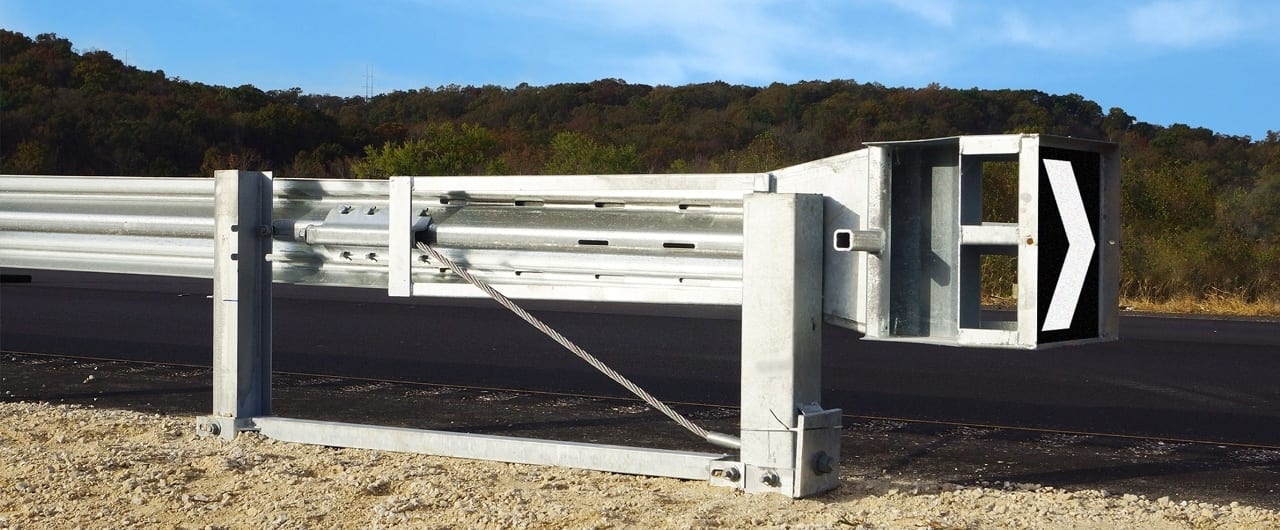

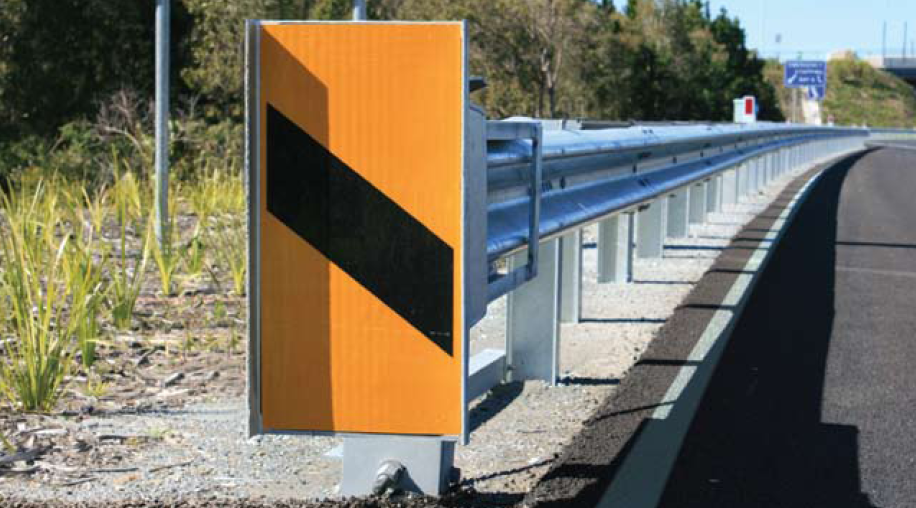

SKT-SP and FLEAT-SP End Terminal Installation and Repair ManualThe ET2000 Plus guardrail extruder terminal is engineered to absorb the kinetic energy of an impacting vehicle at a controlled rate, providing a soft ride-down for vehicle
occupants. Unlike traditional flared guardrail terminals, the ET2000 Plus is a tangential end treatment that is installed on a
straight alignment. The use of an ET2000 Plus provides an end treatment solution for applications where there is insufficient space for a flared end terminal or when it is cost prohibitive to place an embankment for a flared terminal.
The ET2000 Plus is available in two sizes. The compact 7.62m TL2 terminal is an economical solution where the posted speed is less than or equal to 70km/h. The standard 15.24m TL3 terminal is acceptable for all posted speeds greater than 70km/h.

Details Images

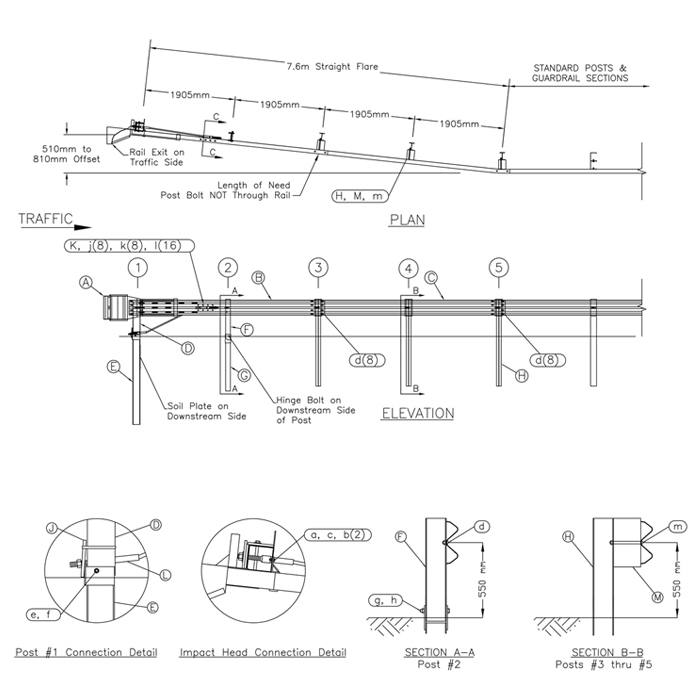

Installation Instructions

SKT-SP and FLEAT-SP End Terminal Installation and Repair ManualGuardrail End Treatment

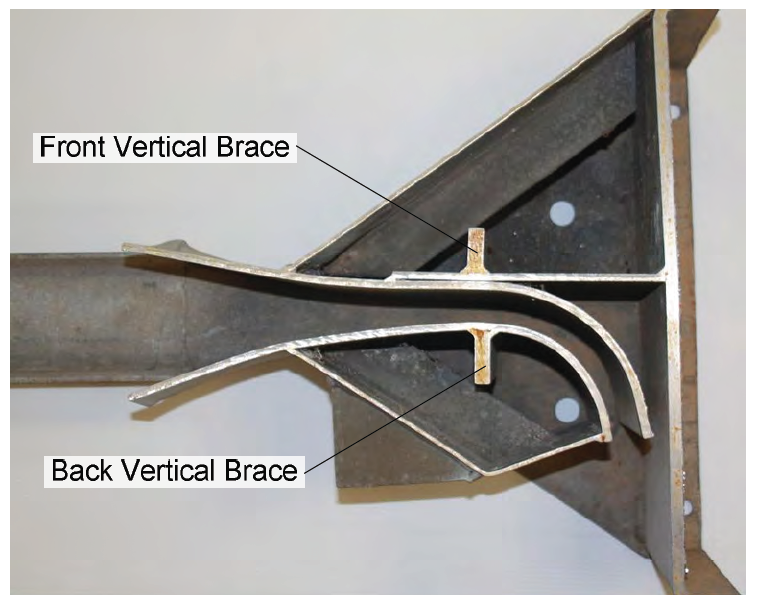

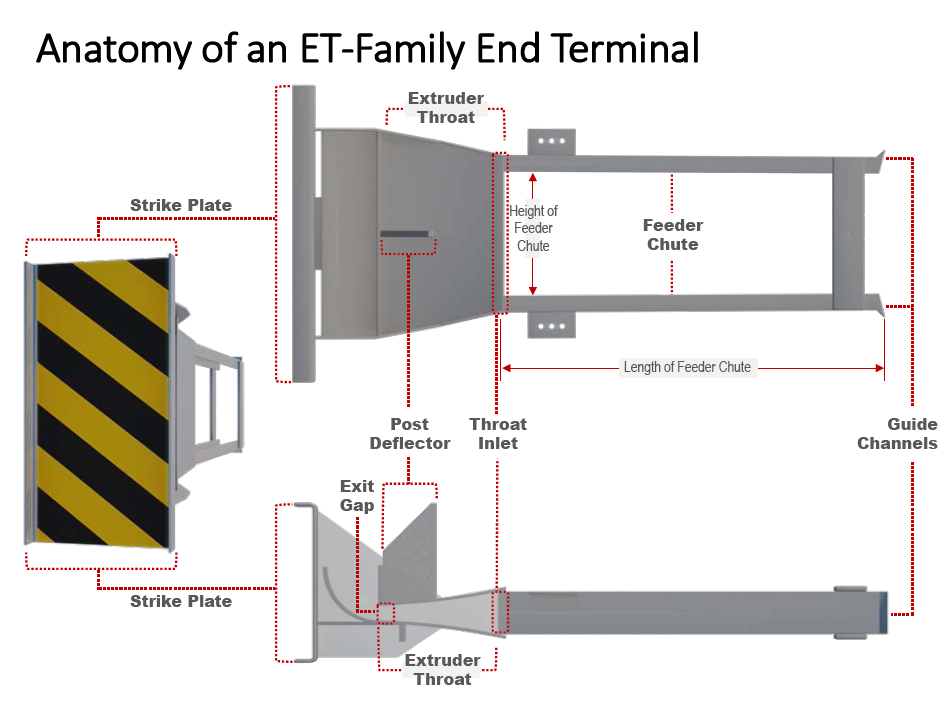

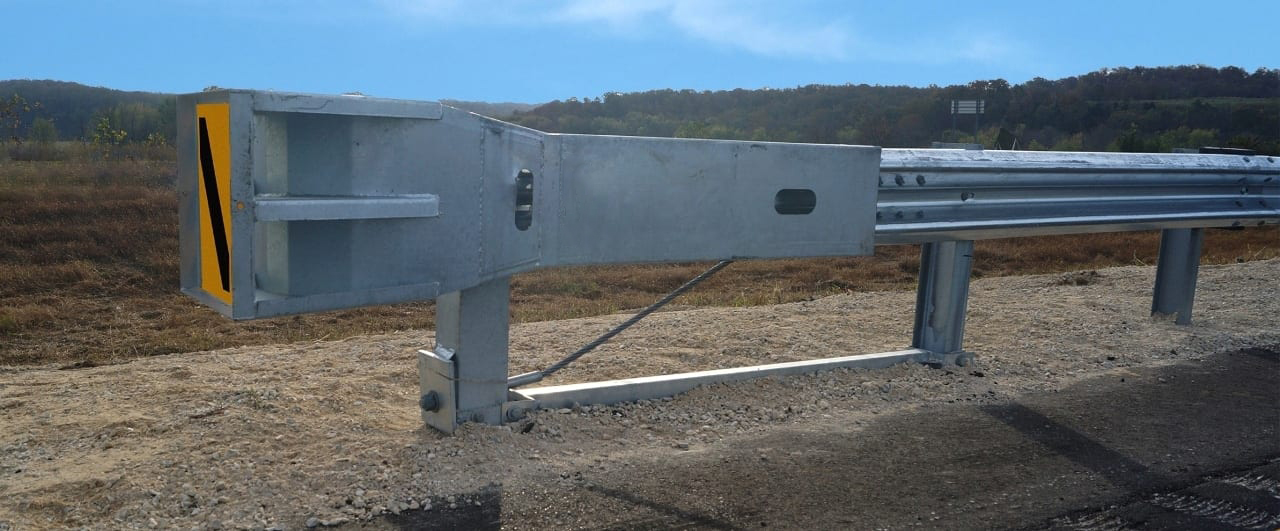

How the ET2000 Plus Works Upon impact, the ET-2000 is designed to travel down the guardrail path. As the extruder terminal travels, Flexbeam Guardrail enters the feeder chute and attening throat. The Flexbeam Guardrail is attened, curved and directed out an exit slot at the backside of the terminal, away from the impacting vehicle. The kinetic energy is absorbed and the vehicle is brought to a safe stop.

Product Paramenters

Features And Benets

* Compliant to AS/NZS 3845:1999
* NCHRP 350 Test Level 3 Compliant
* Connects directly to Flexbeam Guardrail Line Barrier
* TL3 Eight post system length:

15.24m (suitable for design speed > 70km/h)
* TL2 Four post system length:

7.62m (suitable for design speed < 70km/h)

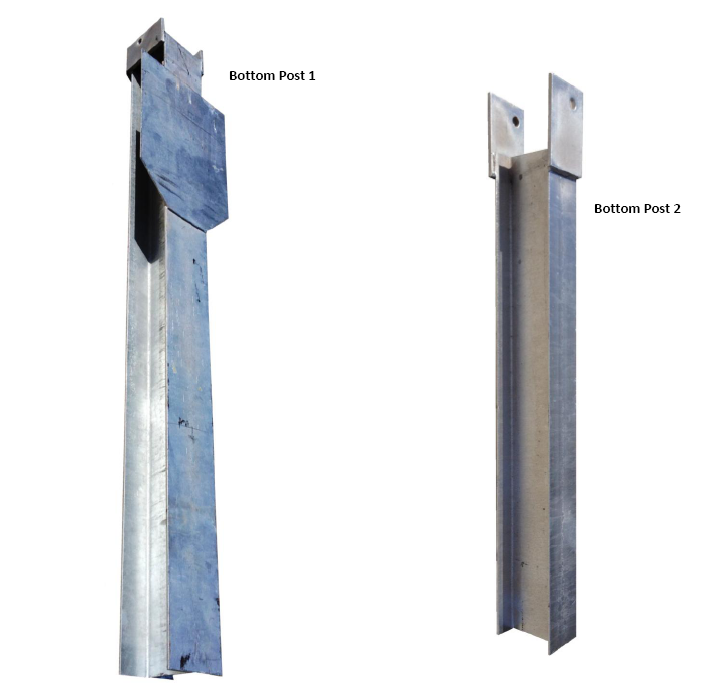

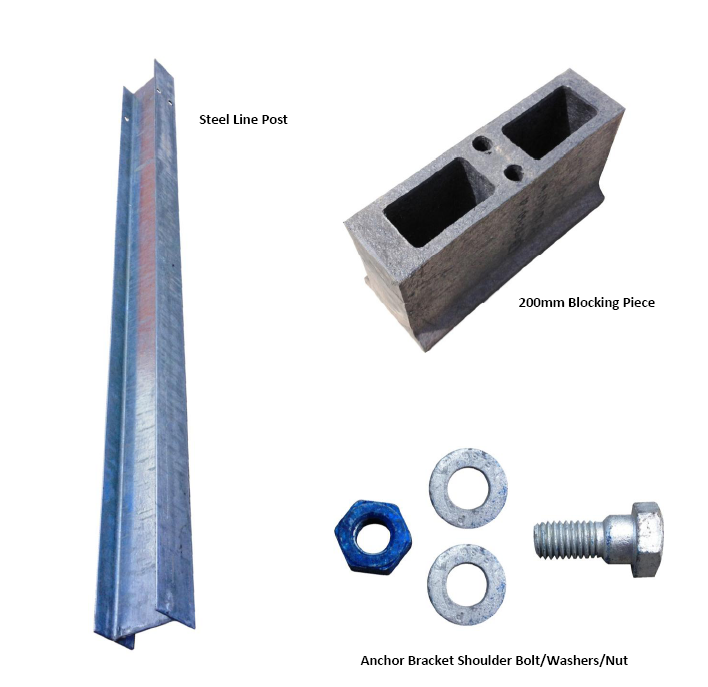

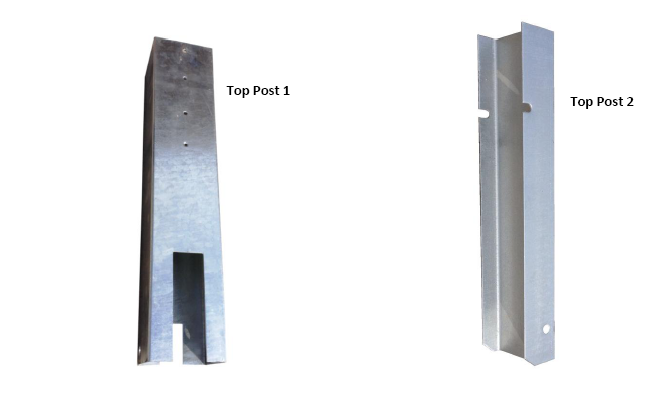

* Drivable steel SYT posts
